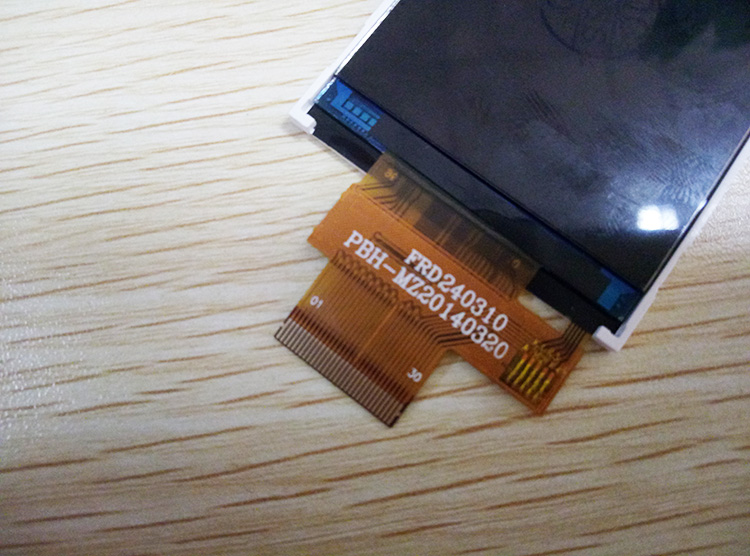

2.4 inch 240*320 12 o'clock TFT LCD display screen with MCU interface and ILI9341V IC panel
品牌: AMELIN
型号: AML240V30016-A
产品详情

2.4 inch 240*320 TN 4SPI TFT LCD touch screen display with ILI9341V driver IC module

Why Choss Us
.jpg
.png
.png
AMELIN DISPLAYOTHER DISPLAY
Unzerbrechlich1.5 M0.8 M
operating temperature-20°~70°10°~60°
brightness≈300CD/M∧2≈150CD/M∧2
liquid crystal glasshigh qualityunevenness
technical supportStrong technical support not always
custom-made can be customnot always
quality guarantee

.After-sales service

We are committed to 1 year product warranty

following year

Product Description



ITEM STANDARD VALUES UNITS
LCD type 2.4’’TFT --
Dot arrangement240(RGB)×320dots
Color filter array RGB vertical stripe --
Display mode Normally White--
Eyes  Viewing Direction 12 o’clock--
Driver IC ILI9341V--
Module size42.72(W) x60.26(H) x 2.30(D) (LCM,no include FPC)mm
Active area36.72(W)×48.96(H)mm
Dot pitch0.153(H) x 0.153(V)mm
Interface 8&16-bit interface--
Resolution240(H)RGBx 320(V) dots--
Surface TreatmentUV Cut--
Color ArrangementRGB-stripe--
WeightTBD g

1




Product Catalog


HDOLED

About Us

Amelin has the first-class automatic production line and the specialized management

and R&D team. Now we own LCM division, TP division, SMT division, FPC division and backlight division. In 2008, our products have passed the quality system certification, and the ISO9001 in 2010, we also have the CE, FCC, ROHS, EMC certification. We take the “safety, stability, excellence” for product design principle and we are committed to the production, R&D, sales and after service.

    We can provide customized TFT LCD module according to customers’ requirement. We can amend FPC, PIN assignment and driver IC and so on. We will focus on innovation and constantly apply advanced technology to product R&D and production to support our customers to occupy the terminal market.

.jpg

Lead time
quantitylead time
1-20(pieces)Within one  working day
21-100(pieces)Within two  working days
101-500(pieces)Within three working days
501-1000(pieces)Within a week
1000-3000(pieces)Within two weeks
3000-5000(pieces)Within three weeks
5000+Within four weeks
FAQ

1.  Q:Can you provide technical assistance?

    A: Yes,We can provide technical support on software and hardware.

2.  Q: Does your product have any warranty?
    A:Yes, we offer 12 months warranty for our products. Damage due to misuse, ill treatment and unauthorized                 modifications and repairs are not covered by our warranty.

3.  Q: Can we guarantee long-term supply?

     A:   Yes,Strong factory guarantee long-term supply.

4.  Q: Do you offer custom solution?
     A: Yes,we can offer custom solution if standard products couldn't meet buyer' requirements.
