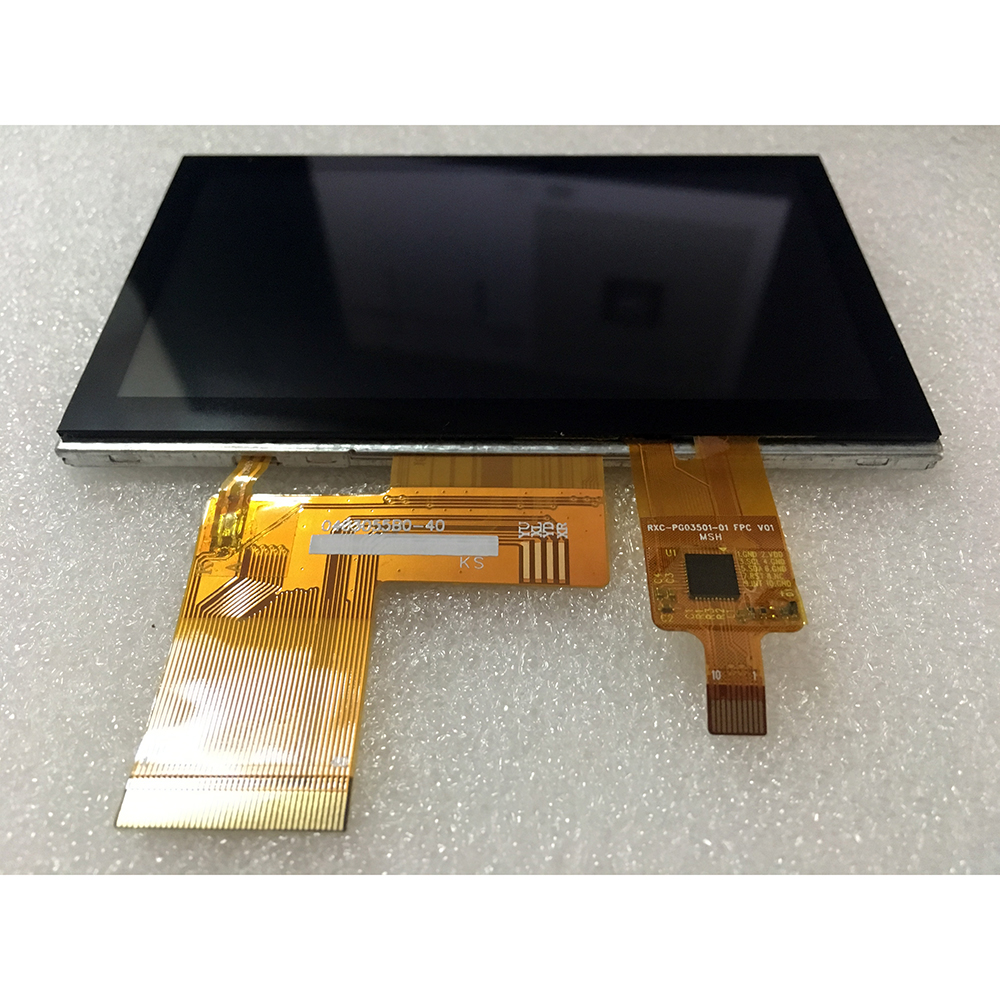

4.3 inch 480*272 tft lcd module with Capacitive touch screen
品牌: AMELIN
型号: AML043056B0-CTP
产品详情
Product Description

product description.jpg

Pictures in kind


General Description

The  AML043056B0-40-7LED  model  is  a  Color  TFT  LCD  supplied  by  AMELIN.

This main Modulehas a 4.3 inch diagonally measuredactive display area with 480(RGB)X272 resolution. Each pixel is divided into Red, Green and Blue sub-pixels  and dots which are arranged in vertical stripes.LCD color is determined with 262,000 colors signal for each pixel.The AML043056B0-40-7LED has been designedto apply the interface method that enables low power, high speed, and high contrast.The AML043056B0-40-7LED is intended to support applications where thin thickness,wide viewing angle and low power are critical factors and graphic displays are important.



ItemDisplayPanel  Remark
Display Mode NormallyWhite, Transmissive LCD
ViewingDirection 12 O’CLOCK
Input Signals   RGB
Outside Dimensions105.5mm(W)*67.2mm(H)*3.0mm(T)
EffectiveArea -
Active Area 95.04mm(W)×53.856mm(H)
Number of Pixels480×RGB×272Pixels
Pixel Pitch0.198mm(H)×0.198mm(W)
PixelArrangement  RGBVertical stripes
Drive IC   ST7282

Outline Drawing


More Products
More products

                  view more                                    view more                                             view more

About us

about us.jpg

Company profile
Shenzhen Amelin Electronic Technology Co.,Ltd is located at Guangming New District, Shenzhen. We focus on TFT LCD module production, OLED, VR and R&D. The sizes of TFT LCD modules and OELD we are offering range from 0.66'' to 13.3''. Our products are widely used for banking machines, communication tools, household appliances, automobile instruments, mobile phone, video door phone, E-book, stock mobiles, MP5, tablet PC, GPS navigator and so on. Our products are also exported to Europe and America, Japan and so on. We have become one of the suppliers of many multinational companies.

contact us1.jpg

Certificate

Production process

Packaging & Shipping

Packaging & Shipping-main.jpg

FAQ
FAQ

1.  Q:Can you provide technical assistance?

    A: Yes,We can provide technical support on software and hardware.

2.  Q: Does your product have any warranty?
    A:Yes, we offer 12 months warranty for our products. Damage due to misuse, ill treatment and unauthorized                 modifications and repairs are not covered by our warranty.

3.  Q: Can we guarantee long-term supply?

     A:   Yes,Strong factory guarantee long-term supply.

4.  Q: Do you offer custom solution?
     A: Yes,we can offer custom solution if standard products couldn't meet buyer' requirements.

Lead time
Lead time
quantitylead time
1-20(pieces)Within one  working day
21-100(pieces)Within two  working days
101-500(pieces)Within three working days
501-1000(pieces)Within a week
1000-3000(pieces)Within two weeks
3000-5000(pieces)Within three weeks
5000+Within four weeks
